C - 3 KG DE CHARGE - MPP3 H
Description

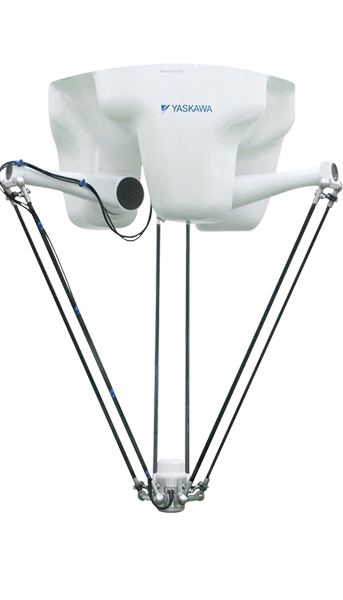

Due to the high torque of the fourth axis, the so-called wrist axis,the MOTOMAN MPP3H moves payloads of up to 3 kg at unprecedented speeds. This delta robot was developed for a wide spectrum of industries, such as food and beverage, pharmaceutical and the automotive sector.
Key benefits
- Protection classification IP67
- Cleanroom class ISO 5 (50% and 100% speed)
- Payloads with unprecedented speed:
- 150 cycles per minute with 3 kg payload
- 185 cycles per minute with 1 kg payload
- Total stroke of 500 mm with a working range of 1300 mm
- High-precision, high-speedconveyor tracking
- Maximum machine accuracy
- Compact installation space: 684 mm diameter
Specifications
- Payload (kg): 3
- Maxi. reach P-point (mm): 1 300
- Controlled axes: 4
- Repeatability: +/- 0.1
- Protection class (wrist): IP 67
- Weight (kg): 115
- Attachment methods: Ceiling
